PARKRAY 99T MK2 SOLID FUEL / EXPLODED VIEW (Page 2)

EXPLODED VIEW

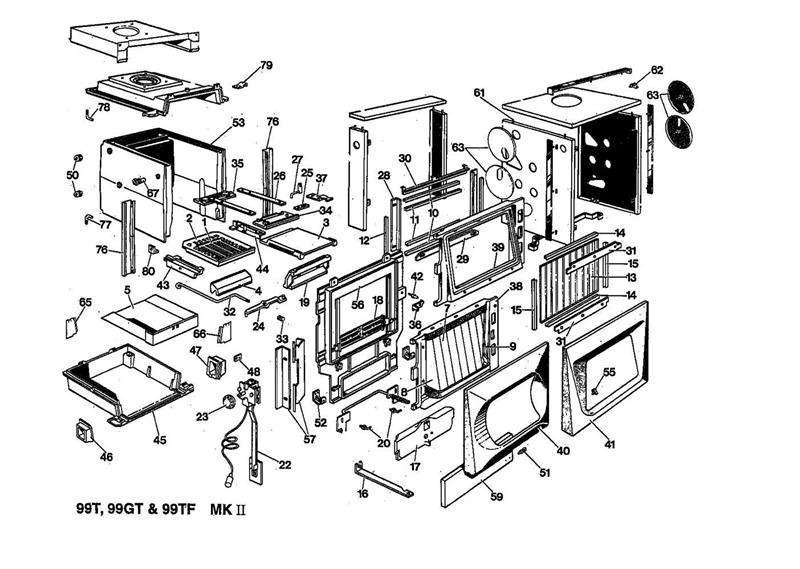

Exploded Diagram for EXPLODED VIEW

Sort by:

Page:

PARKRAY P093035 ASHPIT COVER KNOB VARIOUS

Part No: 2400110 MPN: PA/093035

PARKRAY P115020 CASTING DAMPER BLADE 88 & 99 U

Part No: 2400238 MPN: PA/115020

PARKRAY P115019 CASTING THR RESTRICTOR88/99 U

Part No: 2400236 MPN: P115019

PARKRAY P115026 L BOLT M6X34X20 88-99 & 111

Part No: 2400244 MPN: P115026

PARKRAY P098025 SEAL-395MM GLASS CHNL(TOP+BTM)

Part No: 2400122 MPN: P098025

PARKRAY P115096 CASTING BASE 88/99G

Part No: 2400276 MPN: P115096

PARKRAY P115025 COV.PLT SHAKER ROD(DEBUR)88&99

Part No: 2400242 MPN: P115025

PARKRAY P115023 CONVECT CASE BRKT (PCF) 88&99

Part No: 2400240 MPN: P115023

PARKRAY P115101 BASE SD.SEAL FLANGE-RH (F) 111

Part No: 2400284 MPN: P115101

PARKRAY P115051 L BOLT-M6X20X20 99 & 111

Part No: 2400258 MPN: P115051

PARKRAY P112097 DOOR FRONT AUTUMN DUSK - T TF

Part No: 2400164 MPN: P112097

PARKRAY P115100 BASE SD.SEAL FLANGE-LH (F) 111

Part No: 2400282 MPN: P115100

PARKRAY P112017 DOOR LATCH-PAINTED VARIOUS

Part No: 2400138 MPN: PA/112017

PARKRAY P115016 CASTING GRATE SUPPORT RH 99

Part No: 2400230 MPN: P115016

PARKRAY P115027 PHIAL POCKET 3/4" BSP BRASS

Part No: 2400246 MPN: P115027
