PARKRAY 99GL SOLID FUEL / EXPLODED VIEW

EXPLODED VIEW

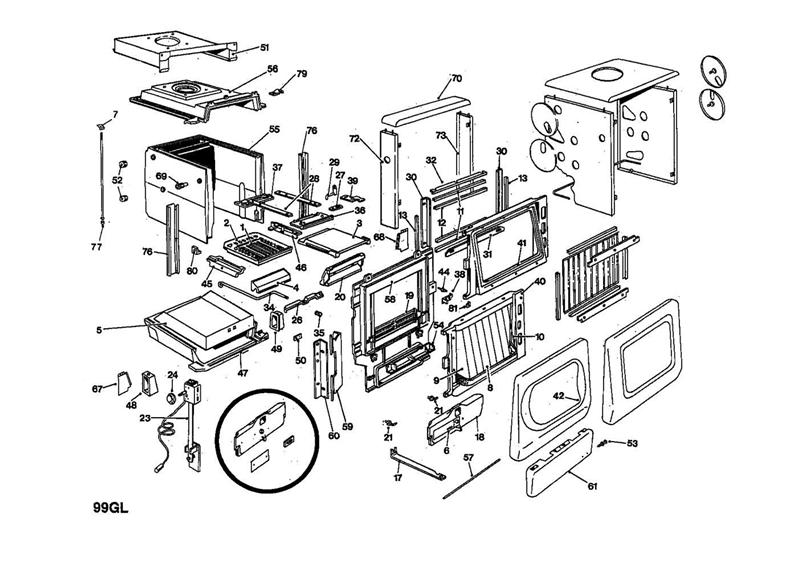

Exploded Diagram for EXPLODED VIEW

Sort by:

Page:

PARKRAY P112102 SUB ASSEMBLY ASHPIT HOOK

Part No: 2400168 MPN: P112102

PARKRAY P080133 BOTTOMGRATE - CHROME IRON

PARKRAY P080133 BOTTOMGRATE - CHROME IRON

Part No: 2400080 MPN: P080133

PARKRAY P112101 SUB ASSEMBLY DOOR CATCH VARIOUS

Part No: 2400166 MPN: P112101

PARKRAY P086017 ASHPAN (SW) VAROUS.88&99

PARKRAY P086017 ASHPAN (SW) VAROUS.88&99

Part No: 2400098 MPN: P086017

PARKRAY P086007 CASTING BOTTOM GRATE FRAME 88

PARKRAY P086007 CASTING BOTTOM GRATE FRAME 88

Part No: 2400096 MPN: 086007

PARKRAY P112039 CASTING FRONT FIREBAR VARIOUS

PARKRAY P112039 CASTING FRONT FIREBAR VARIOUS

Part No: 2400150 MPN: P112039

PARKRAY P130093 CONTROL KNOB

PARKRAY P130093 CONTROL KNOB

Part No: 2400480 MPN: 130093

PARKRAY P115048 CASTING B/GRATE BACK STRIP 99G

PARKRAY P115048 CASTING B/GRATE BACK STRIP 99G

Part No: 2400256 MPN: 115048

PARKRAY P098037 KNOB SHAKER ROD Q-T & G

Part No: 2400128 MPN: P098037

PARKRAY P126035 HINGE ROD A.C.F,L. G&GL (CROP)

Part No: 2400426 MPN: PA/126035

PARKRAY P098033 SHAKER ROD QC

Part No: 2400126 MPN: P098033

PARKRAY P126007 DOOR LATCH-PNTD G/GL

Part No: 2400410 MPN: PA/126007

PARKRAY P126221 SUB ASSEMBLY ASHPIT COVER G/GL

Part No: 2400436 MPN: P126221

PARKRAY P086047 RESTRICTOR LINK SPINDLE

PARKRAY P086047 RESTRICTOR LINK SPINDLE

Part No: 2400102 MPN: P086047

PARKRAY P115019 CASTING THR RESTRICTOR88/99 U

Part No: 2400236 MPN: P115019
