NXR3 36 NG / INNER CASING ASSY

INNER CASING ASSY

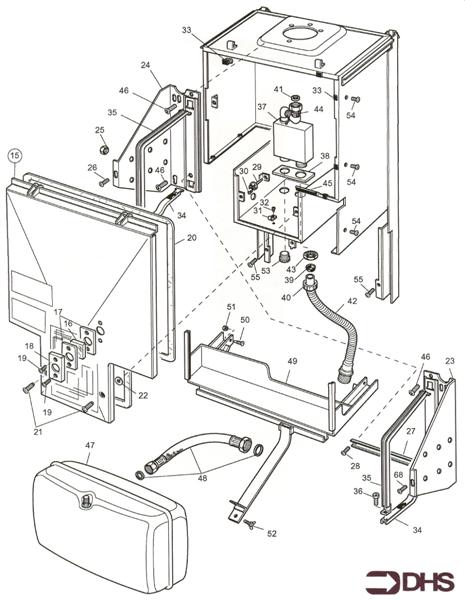

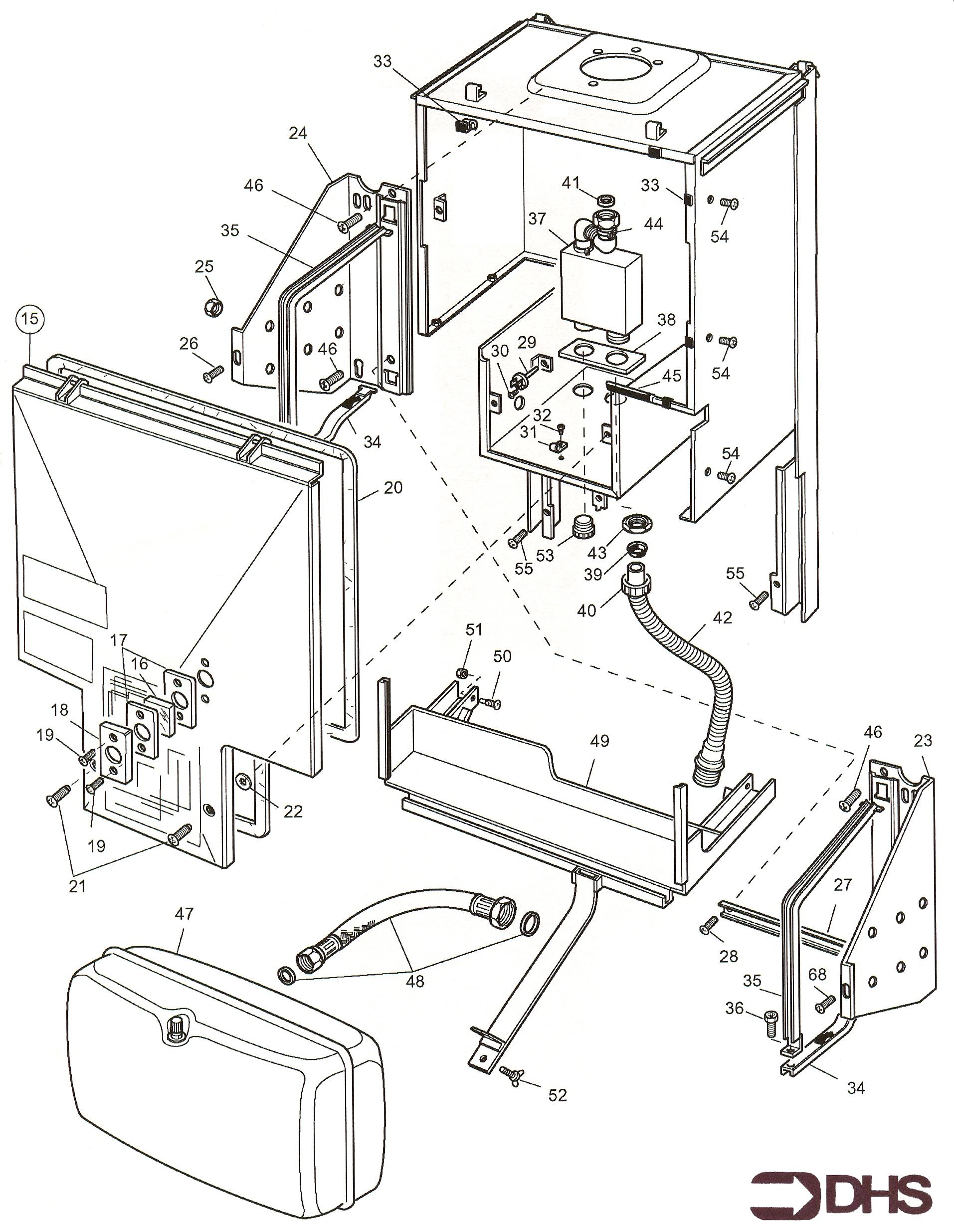

Exploded Diagram for INNER CASING ASSY

Installation Manual

Sort by:

Page:

POTTERTON NXR3 SIDE CASING RIGHT HAND REAR 4&7

Part No: 1126828 MPN: COM17937789

POTTERTON FRONT CASING LOWER LEFT WHITE

Part No: 1126952 MPN: S506303

POTTERTON COM17937404 NXR3 R/HAND SIDE SUPPORT 7 SEC

Part No: 1125625 MPN: COM17937404

POTTERTON FRONT CASING TOP PANEL WHITE

Part No: 1126969 MPN: S506636

POTTERTON COM17937546 NXR3 REAR TOP CASING 4 7 SECTI

Part No: 1125632 MPN: COM17937546

POTTERTON S506312 S/CASING MIDDLE 37/38/39 WHITE

Part No: 1127347 MPN: S506312

POTTERTON SIDE CASING RIGHT HAND FRONT WHITE

Part No: 1126884 MPN: S134321EE

POTTERTON COM17937364 NXR3 CASING FRAME FRONT

Part No: 1125621 MPN: COM17937364

POTTERTON SIDE CASING RIGHT HAND REAR 35/38 WHT

Part No: 1126955 MPN: S506306

POTTERTON COM17937439 NXR3 CASING SUPPORT BRKT FRONT

Part No: 1125628 MPN: COM17937439

POTTERTON COM17937423 NXR3 L/HAND SIDE SUPPORT 9 SEC

Part No: 1127179 MPN: COM17937423

POTTERTON NXR3 TOP PANEL MIDDLE 7 8 9SEC

Part No: 1125635 MPN: COM17937576

POTTERTON NXR3 TOP PANEL FRONT SUPPORT

Part No: 1126825 MPN: COM17937524

POTTERTON FRONT CASING LOWER RIGHT WHITE

Part No: 1126951 MPN: S506302

POTTERTON COM17937394 NXR3 R/HAND SIDE SUPPORT 6 SEC

Part No: 1125624 MPN: COM17937394

45 products found
