Orings, Washers & Gaskets for Baxi Combi HE Plus 100

GAS VALVE, PUMP & PIPEWORK ARR

Exploded Diagram for GAS VALVE, PUMP & PIPEWORK ARR

INNER CASE ASSY

Exploded Diagram for INNER CASE ASSY

PIPEWORK

Exploded Diagram for PIPEWORK

WALL JIG & HYDRAULIC CONNECTIO

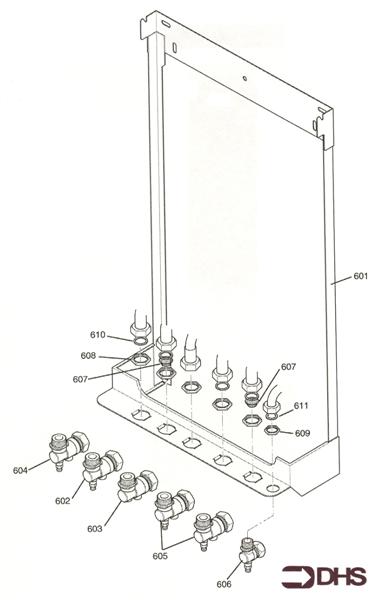

Exploded Diagram for WALL JIG & HYDRAULIC CONNECTIO

Brand: Baxi Range: Combi Model: HE Plus 100 GC Number: 47-075-15

We offer a wide range of spare parts for the Baxi Combi He Plus 100. Can't find the part you're looking for? You can contact us and a member of our team will be more than happy to help find the part you need.

Installation Manual

All of our boiler manuals are free to download from our boiler manuals section

You can narrow your results further by choosing one of the following sub-appliances:

Installation Manual
BAXI 7672063 GASKET MANIFOLD FAN 316

BAXI 7672063 GASKET MANIFOLD FAN

Part No: 1116574 MPN: 7672063

£5.87 inc VAT

In stock - Next day delivery available

Baxi 240812 O'Ring - 20.64 x 2.62mm 420

Baxi 240812 O'Ring - 20.64 x 2.62mm

Part No: 1114298 MPN: 240812

£5.15 inc VAT

In stock - Next day delivery available

Baxi 242229 Gasket 405

Baxi 242229 Gasket

Part No: 1114726 MPN: 242229

£4.79 inc VAT

In stock - Next day delivery available

BAXI 7671969 SEAL MANIFOLD (2.62MM DIAMETER) 414

BAXI 7671969 SEAL MANIFOLD (2.62MM DIAMETER)

Part No: 1114217 MPN: 7671969

£11.51 inc VAT

In stock - Next day delivery available

BAXI 242555 O RING 9.6MM ID X2.4MM VITON 321

BAXI 242555 O RING 9.6MM ID X2.4MM VITON

Part No: 1114904 MPN: 242555

£7.31 inc VAT

In stock - Next day delivery available

BAXI 242227 O RING 13.3MM I/DX2.4MM VITON 320

BAXI 242227 O RING 13.3MM I/DX2.4MM VITON

Part No: 1114722 MPN: 242227

£8.75 inc VAT

Available in 5-7 working days

BAXI 244738 KIT FIBRE WASHER AND LOCKNUT 324

BAXI 244738 KIT FIBRE WASHER AND LOCKNUT

Part No: 1115372 MPN: 244738

£15.47 inc VAT

In stock - Next day delivery available

BAXI 240810 O RING 517

BAXI 240810 O RING

Part No: 1114294 MPN: 240810

£4.79 inc VAT

In stock - Next day delivery available

BAXI 240815 WASHER FIBRE G1/2 611

BAXI 240815 WASHER FIBRE G1/2

Part No: 1114304 MPN: 240815

£4.31 inc VAT

In stock - Next day delivery available

BAXI 240814 WASHER FIBRE G3/4 610

BAXI 240814 WASHER FIBRE G3/4

Part No: 1114302 MPN: 240814

£4.67 inc VAT

In stock - Next day delivery available

BAXI 245009 O' RING I/D 21.82 X 3.53 519

BAXI 245009 O' RING I/D 21.82 X 3.53

Part No: 1115524 MPN: 245009

Sorry, this part is now obsolete

View Part Details
BAXI 240839 O RING (GREEN) 402/437

BAXI 240839 O RING (GREEN)

Part No: 1114312 MPN: 240839

Sorry, this part is now obsolete

View Part Details
317

BAXI 247133 SEALING RING

Part No: 1116204 MPN: 247133

Sorry, this part is now obsolete

View Part Details
BAXI 249898 GASKET DOOR 309

BAXI 249898 GASKET DOOR

Part No: 1117446 MPN: 249898

Sorry, this part is now obsolete

View Part Details
14 products found
